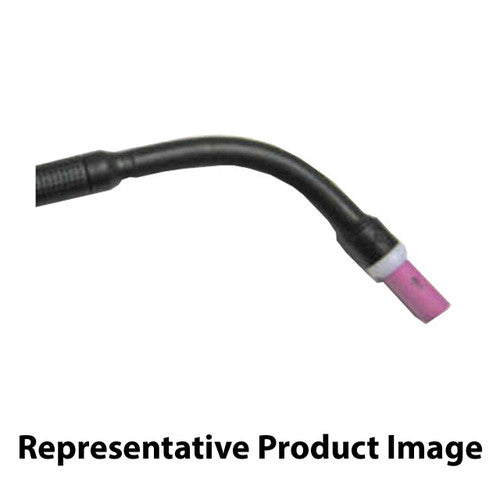

CK Worldwide CK25-25 TIG Torch - 250 Amp Water-Cooled Flex Head, 25' Cable

The CK25-25 delivers 250 amp capacity at 100% duty cycle with the precision and flexibility demanded by professional TIG welding applications. Featuring CK Worldwide's signature flex head design, this water-cooled torch provides 40 degrees of directional versatility for accessing tight joints and complex weld geometries.

Built around the proven 2 Series head platform, this torch integrates Max Flow cooling technology to maintain optimal operating temperatures during extended welding sessions. The 25-foot standard cable configuration provides excellent reach for shop and field applications, while the valve-free design ensures streamlined operation and reduced maintenance requirements.

• Amperage Rating: 250 amp ACHF or DCSP @ 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Design: Flex head with 40-degree range of motion
• Cable Length: 25 feet (7.6m) standard 3-piece configuration
• Torch Length: 11-1/2" (29.2cm) overall neck length
• Weight: 3 oz (85g)
• Thread Pattern: 5/16" x 24 for 2 Series consumables
• Valve Configuration: Valve-free design

Compatible Consumables

• 200L — Long Back Cap
• 200M — Medium Back Cap
• 200S — Short Back Cap
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2GL116 — 1/16" (1.6mm) Gas Lens

Compatible with all standard 2 Series consumables and accessories, the CK25-25 integrates seamlessly into existing TIG welding setups. Ideal for precision welding applications requiring extended reach and flexible head positioning on aluminum, stainless steel, and exotic alloys.
