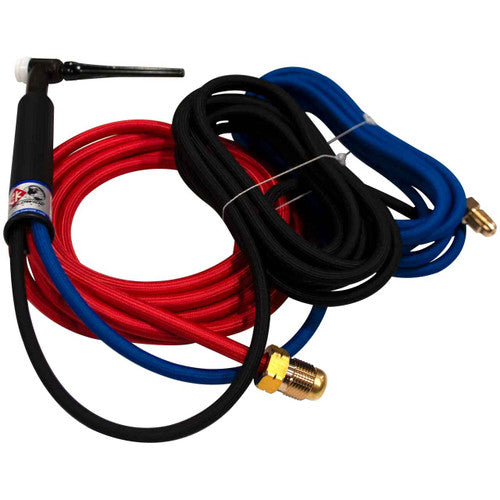

CK Worldwide CK312SF FX - 350 Amp Flex Head TIG Torch, Water-Cooled, 12.5' Super-Flex Cables

The CK Worldwide CK312SF FX delivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle, featuring the signature flex head design for enhanced maneuverability. This water-cooled torch combines Max Flow technology with superflex cables to provide consistent cooling performance and superior cable flexibility for demanding fabrication work.

• 350 amp capacity at 100% duty cycle for continuous heavy-duty welding
• Flex head design offers 40-degree articulation in any direction for improved access
• Water-cooled construction with Max Flow technology for superior heat dissipation
• 12.5-foot superflex cables provide maximum flexibility and reduced fatigue
• Streamlined design without valve for simplified operation
• 3 Series torch head accepts industry-standard consumables
• Professional build quality designed for high-volume production environments

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 300L — Long Back Cap

This torch is compatible with CK Worldwide's complete 3 Series consumable system and works with standard ACHF or DCSP welding power sources. The flexible head design makes it ideal for complex weldments requiring precise torch positioning in confined spaces.
