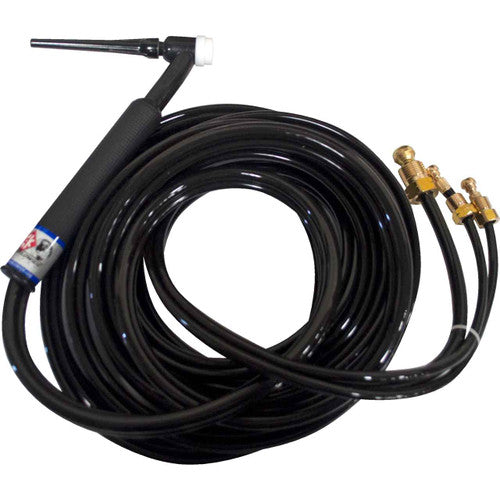

CK Worldwide CK325 FX - 350 Amp Flex Head TIG Torch, Water-Cooled, 25' Standard Cables

The CK325 FX delivers 350 amp capacity at 100% duty cycle with CK Worldwide's signature flex head technology, providing 40 degrees of articulation in any direction for precision welding in tight spaces. This water-cooled torch features Max Flow technology to maintain optimal operating temperatures during extended welding sessions.

Built for demanding production environments, this torch combines the reliability of CK's 3-series platform with the versatility of flex head positioning. The 25-foot standard cable configuration provides excellent reach while maintaining proper current delivery and cooling flow.

• 350 amp rating at 100% duty cycle (ACHF/DCSP)
• Flex head design — 40° articulation in any direction
• Water-cooled with Max Flow technology
• 25-foot standard cables — 3-piece construction
• Overall length: 9-1/2" (24.1cm)
• Weight: 6.5 oz (184g)
• Thread pattern: 3/8" x 32
• Valve-free design for streamlined operation

Compatible Consumables

• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 300L — Long Backcap
• 300S — Short Backcap

Ideal for fabrication shops requiring maximum amperage capacity with superior maneuverability. Compatible with all CK 3-series consumables and standard water-cooled power sources with appropriate connector adapters.
