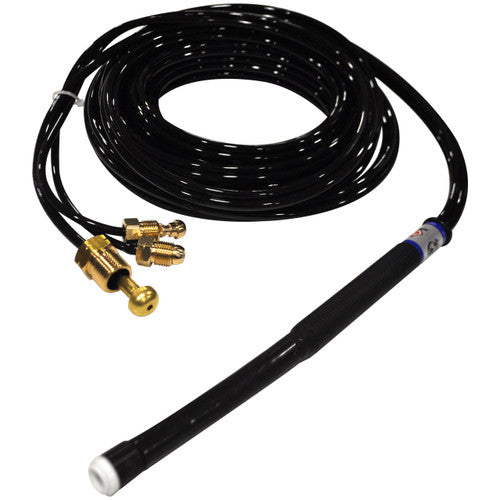

CK Worldwide CKPF225 250 Amp Flex Head TIG Torch - Water-Cooled, 25' Standard Cable

The CK Worldwide CKPF225 delivers professional-grade TIG welding performance with its 250-amp capacity at 100% duty cycle and signature flex head design. This water-cooled torch features CK's Max Flow technology and 40-degree articulating head for superior maneuverability in tight spaces.

Built for demanding fabrication environments, this torch combines the reliability of CK Worldwide's proven design with advanced cooling efficiency. The flex head eliminates the need for awkward torch angles while maintaining precise arc control, making it ideal for complex weldments and multi-position welding applications.

• 250 amperage rating at 100% duty cycle (ACHF/DCSP)
• Water-cooled design with Max Flow technology for extended operation
• 40-degree flex head articulation in all directions
• 25-foot standard cables for shop flexibility
• No valve design for streamlined operation
• 2-series head accessories compatibility
• Pencil flex configuration for precision work
• Overall length: 11-1/2 inches (29.2cm)
• Weight: 3 oz (85gm)

Compatible Consumables

• 200L — Long Back Cap
• 2C116GS — 1/16" Gas Saver Collet
• 2C332GS — 3/32" Gas Saver Collet
• 2C418GS — 1/8" Gas Saver Collet
• 2CBGS-1 — Gas Saver Collet Body
• TAS116GS — 1/16" Tungsten Adapter
• TAS332GS — 3/32" Tungsten Adapter
• 2A4GS — #4 Alumina Cup
• 2A6GS — #6 Alumina Cup
• 2HSGS-1 — Heat Shield

This torch accepts standard 2-series consumables and is compatible with CK's complete range of collets, cups, and tungsten electrodes from 0.040" to 1/8". Professional welders choose the CKPF225 for its proven durability in high-amperage applications and versatile positioning capabilities.
