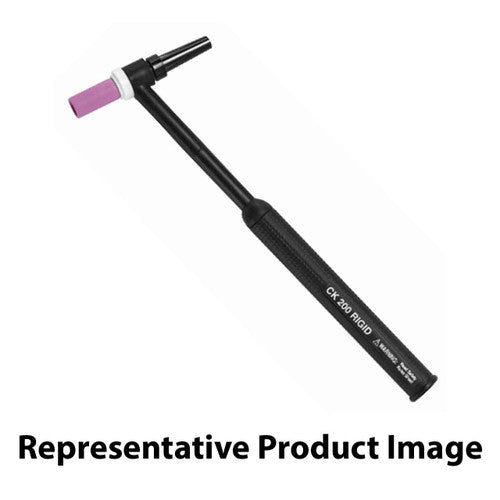

CK Worldwide CKXL225 - 250 Amp TIG Torch, Water-Cooled, Rigid Head, 25' Standard Cables

The CKXL225 delivers professional-grade TIG welding performance with its 250 amp @ 100% duty cycle rating and water-cooled Max Flow technology. This rigid head torch provides the stability and precision required for demanding fabrication work while maintaining optimal operating temperatures during extended welding sessions.

Featuring a 7-1/2" (19.0cm) neck length and weighing just 3 oz (85gm), the CKXL225 offers excellent maneuverability without sacrificing durability. The water-cooled design with standard 3-piece cables makes this torch ideal for high-amperage applications where consistent performance is critical.

• Amperage Rating: 250 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Water-cooled with Max Flow technology
• Head Style: Rigid for maximum stability
• Cable Length: 25 feet standard 3-piece configuration
• Neck Length: 7-1/2" (19.0cm)
• Weight: 3 oz (85gm)
• Overall Length: 13" (33.0cm)
• Valve: No valve included for streamlined operation

Compatible Consumables

• 2A5GS — #5 Alumina Cup
• 2A6GS — #6 Alumina Cup
• 2A7GS — #7 Alumina Cup
• 2A8GS — #8 Alumina Cup
• 3CB332 — 3/32" Collet Body
• 3CB116 — 1/16" Collet Body
• 3CB18 — 1/8" Collet Body
• 3C332 — 3/32" Collet
• 3C116 — 1/16" Collet
• GLSW532 — #5 Gas Lens Set-Up

This torch is compatible with CK Worldwide's extensive line of 2 Series consumables and accessories. The CKXL225 is engineered for professional welders and fabrication shops requiring reliable, high-amperage TIG welding capability with superior arc control and extended operational life.
