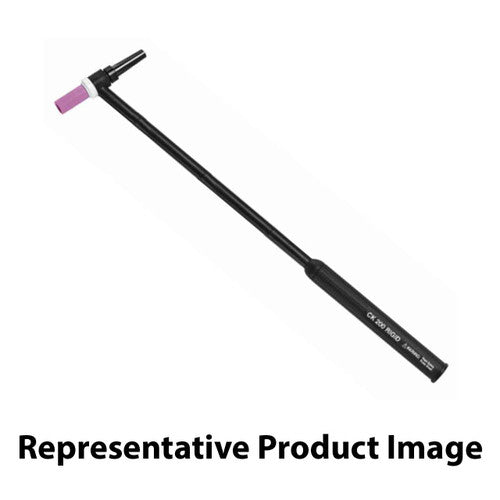

CK Worldwide CKXXL225 250 Amp Rigid Head TIG Torch, Water-Cooled, 25' Standard Cables

The CK XXL225 delivers professional-grade TIG welding performance with 250 amp capacity at 100% duty cycle, making it ideal for heavy-duty fabrication and continuous welding applications. This water-cooled torch features a rigid head design for maximum arc stability and precision control during demanding welding operations.

Built with CK's Max Flow cooling technology, this torch maintains optimal operating temperatures even during extended welding sessions. The 25-foot standard cable configuration provides excellent reach for shop and field applications while delivering reliable power transmission.

• 250 amp rating at 100% duty cycle
• Water-cooled design with Max Flow technology
• Rigid head for enhanced arc stability
• 25-foot standard cables for extended reach
• Valve-free design for streamlined operation
• Compatible with standard TIG consumables

Compatible Consumables

• 2A5GS — #5 Alumina Cup
• 2A6GS — #6 Alumina Cup
• 2A8GS — #8 Alumina Cup
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB18 — 1/8" Collet Body
• 2C116 — 1/16" Collet
• 2C332 — 3/32" Collet
• 2C18 — 1/8" Collet
• TAS040GS — Gas Lens Adapter

This torch excels in production welding environments where consistent performance and extended duty cycles are essential. The rigid head configuration makes it particularly suitable for precision work on thick materials and automated welding applications.
