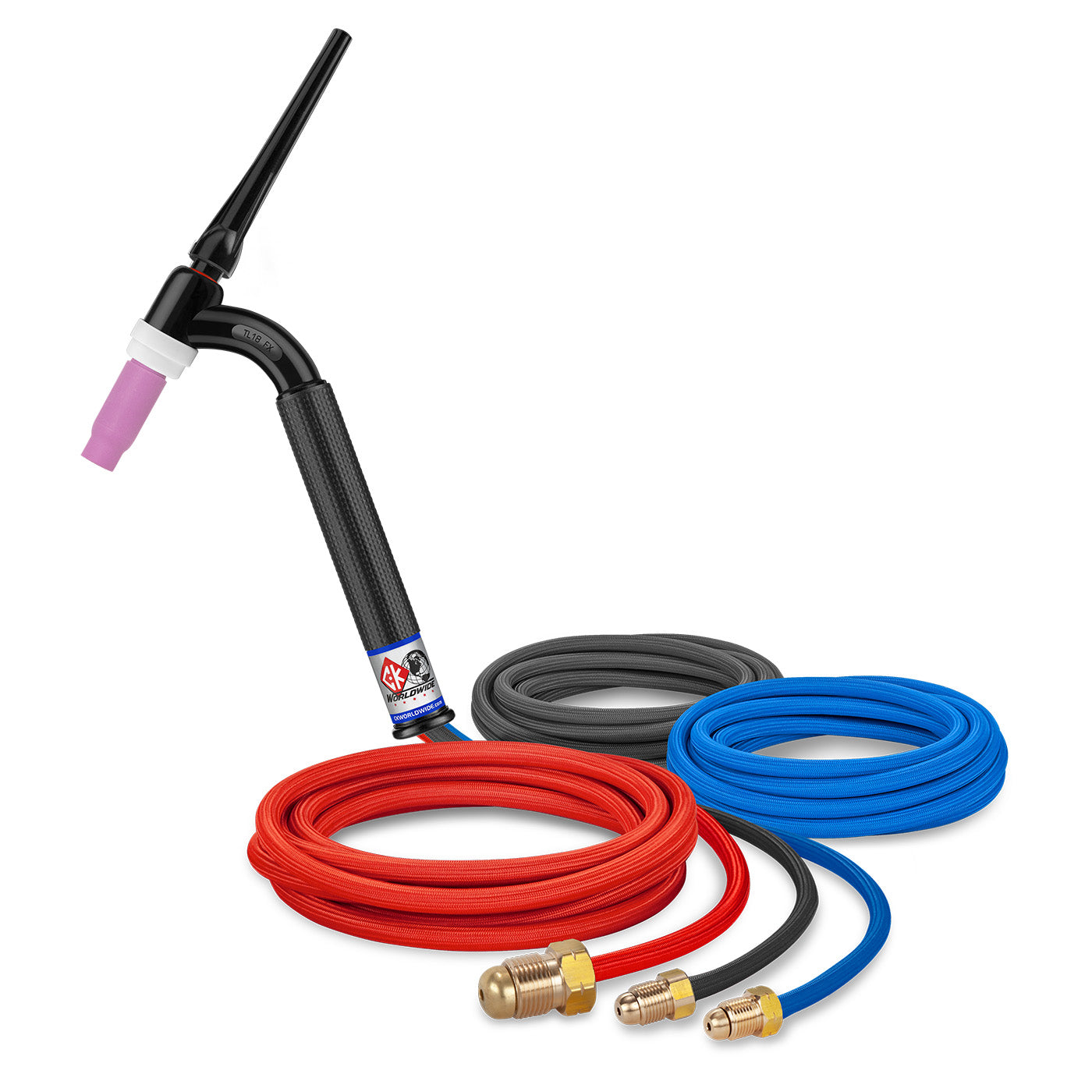

CK Worldwide TL18-12 FX - 350 Amp Flex-Head TIG Torch, Water-Cooled, 12.5' Trim-Line

The TL18-12 FX delivers professional-grade TIG welding performance with a 350 amp rating at 100% duty cycle in a compact, maneuverable package. This water-cooled torch features CK Worldwide's signature flex head design, providing 40 degrees of positioning versatility in any direction for enhanced access in tight welding applications.

Built on the proven 3 Series platform, this torch incorporates Max Flow cooling technology to maintain optimal operating temperatures during extended welding sessions. The streamlined design omits the gas valve for a cleaner grip profile, while the Trim Line handle offers a slim 8-inch length and lightweight 5 oz construction for superior control and reduced operator fatigue.

• 350 amp ACHF or DCSP @ 100% duty cycle
• Water-cooled with Max Flow technology
• Flex head — 40 degrees movement in any direction
• 12.5 ft standard cables (3-piece configuration)
• Trim Line series — 8" length, 5 oz weight
• No gas valve — streamlined design
• 3 Series head accessories compatibility

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4")
• 3A5 — #5 Alumina Cup (5/16")
• 3A6 — #6 Alumina Cup (3/8")
• 3A8 — #8 Alumina Cup (1/2")
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Back Cap

Ideal for precision welding applications requiring maximum torch positioning flexibility, this torch accepts tungsten electrodes from .020" to 1/4" diameter and is compatible with standard 3 Series consumables and accessories for versatile shop operation.
