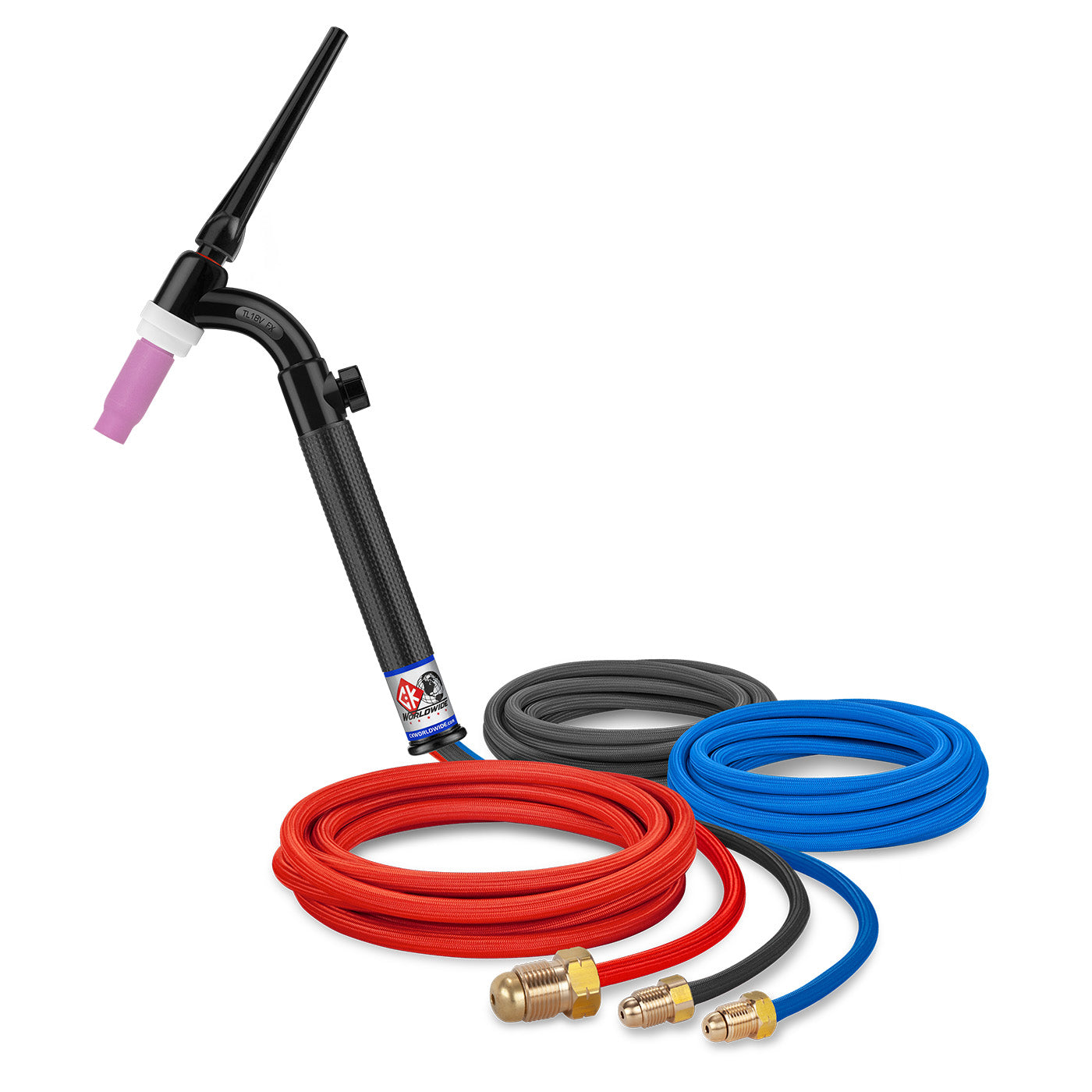

CK Worldwide TL18V-12SF FX - 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5' Super-Flex Cables, Trim Line

The TL18V-12SF FX combines CK Worldwide's signature Flex-Head technology with integrated gas flow control, delivering 350 amp capacity at 100% duty cycle for demanding TIG welding applications. The flexible neck provides 40 degrees of movement in any direction, while the built-in valve allows precise gas flow adjustment at the torch handle.

This water-cooled torch features CK's Max Flow cooling technology and 12.5' Super-Flex cables that enhance operator mobility and reduce fatigue during extended welding sessions. The Trim-Line handle design offers a slim profile for improved control and maneuverability in tight spaces.

• 350 amp ACHF or DCSP @ 100% duty cycle
• Water-cooled with Max Flow technology
• Flex-head design — 40 degrees movement in any direction
• Integrated valve for gas flow control at handle
• 12.5' Super-Flex cables for maximum flexibility
• Trim-Line handle — slim grip design
• 8" overall length, 5 oz weight
• 3/8" x 32 thread pattern

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Compatible with 3 Series consumables and accessories, this torch is ideal for precision TIG welding in fabrication shops, manufacturing environments, and field applications where operator comfort and torch positioning flexibility are critical for quality results.
