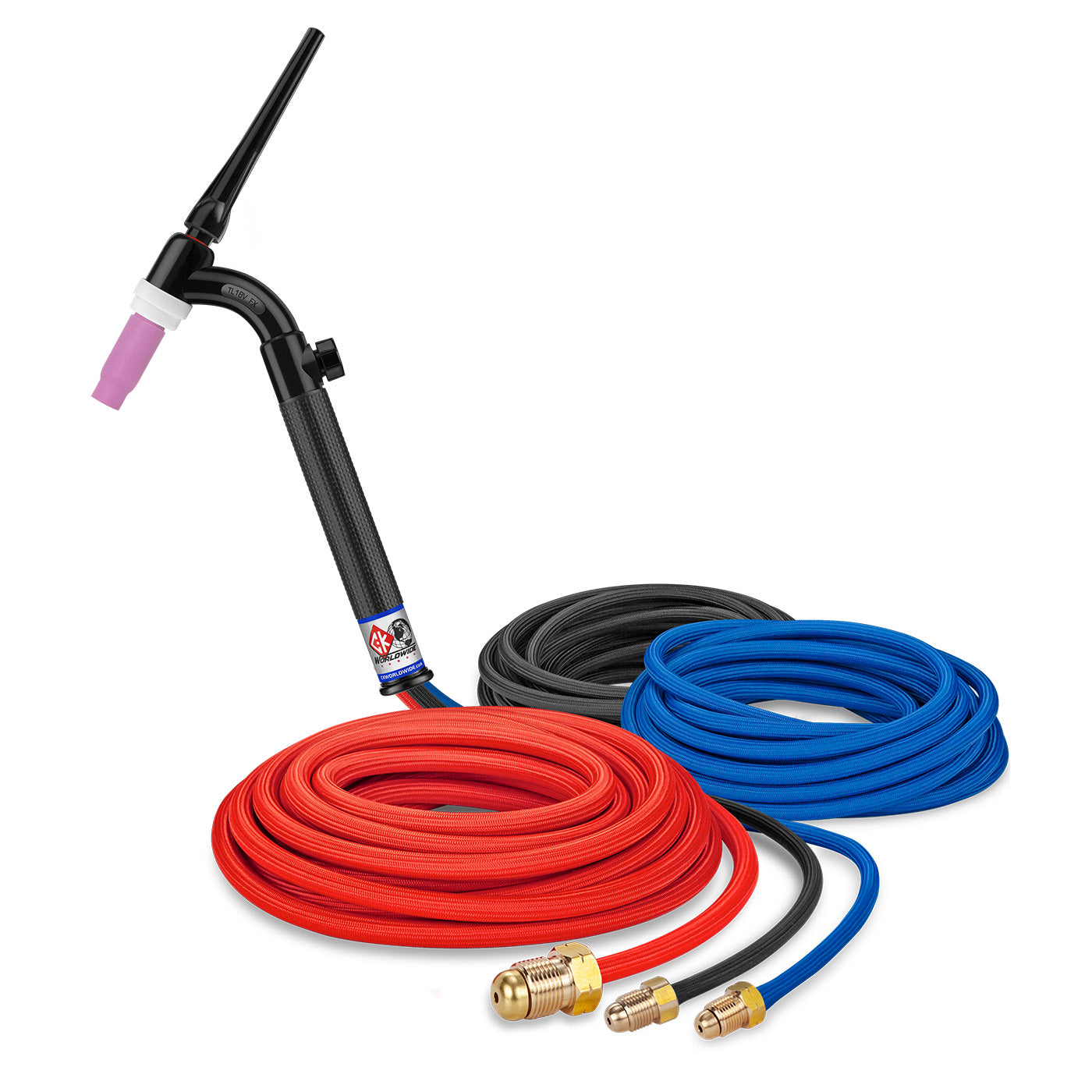

CK Worldwide TL18V-25 FX 350 Amp Water-Cooled TIG Torch with Flex Head and Valve, 25' Standard Cables

The TL18V-25 FX delivers professional-grade TIG welding performance with the versatility of a flex head design. This water-cooled torch combines 350 amp capacity at 100% duty cycle with CK Worldwide's signature flex head technology, providing 40 degrees of articulation in any direction for optimal access in complex welding positions.

Built for demanding fabrication environments, this torch features an integrated gas valve on the handle for precise flow control and Max Flow water-cooling technology to maintain consistent operating temperatures during extended welding sessions. The Trimline handle design offers enhanced grip control while reducing operator fatigue.

• 350 amp ACHF or DCSP @ 100% duty cycle
• Water-cooled with Max Flow technology
• Flex head design — 40° articulation in any direction
• Gas valve integrated into handle
• 25-foot standard cables for extended reach
• Trimline handle for improved control and comfort
• Overall length: 8 inches (20.3cm)
• Weight: 5 oz (141gm)
• Thread pattern: 3/8" x 32

Compatible Consumables

• 300L — Long Backcap
• 300M — Medium Backcap
• 300S — Short Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup

The TL18V-25 FX uses 3 Series consumables and accepts tungsten electrodes from .020" to 1/4" diameter. Compatible with most industrial TIG welding power sources equipped with water-cooling systems and remote amperage control capabilities.
