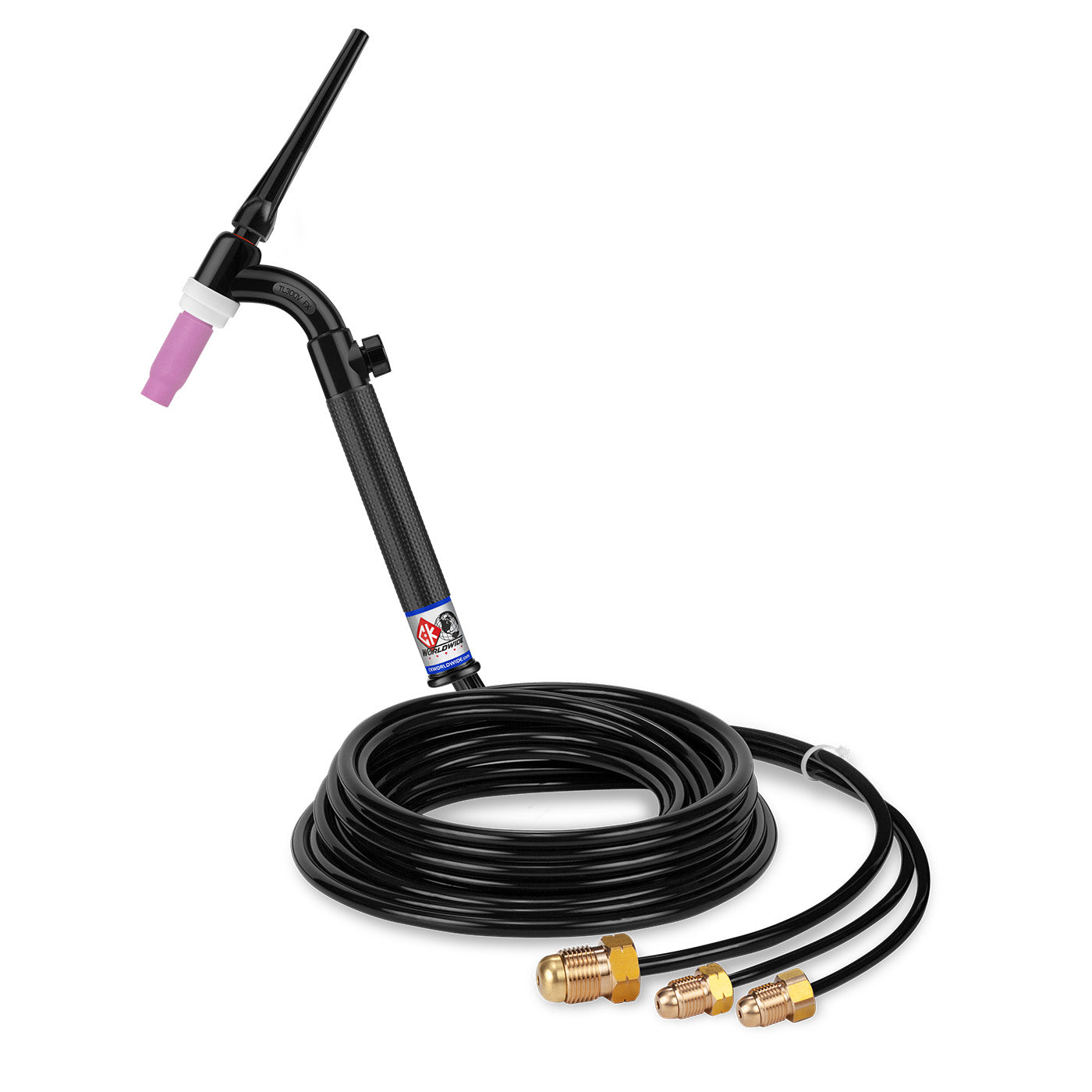

CK Worldwide TL312V FX - 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5' Standard Cables, Trim Line

The TL312V FX delivers professional 350-amp TIG welding capability with CK Worldwide's signature flex head technology, providing 40 degrees of articulation in any direction for superior access in confined spaces. This water-cooled torch features integrated valve control for precise gas flow adjustment directly at the handle.

Built for demanding production environments, this torch incorporates Max Flow cooling technology to maintain optimal operating temperatures during extended welding sessions. The Trim Line handle design offers a slim, ergonomic grip that enhances control and reduces operator fatigue during precision work.

• 350 amp capacity at 100% duty cycle (ACHF or DCSP)
• Flex head design — 40-degree articulation in any direction
• Integrated valve control for gas flow adjustment at handle
• Water-cooled with Max Flow technology for extended operation
• 12.5-foot standard cables for versatile shop positioning
• Trim Line handle — slim profile for enhanced control
• 3-series thread pattern (3/8" x 32) for wide consumable compatibility
• Accommodates .020" to 1/4" tungsten electrode sizes

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 300L — Long Back Cap

Ideal for fabrication shops requiring precise control in tight access applications, this torch excels in aluminum, stainless steel, and exotic alloy welding where both power and maneuverability are essential.
