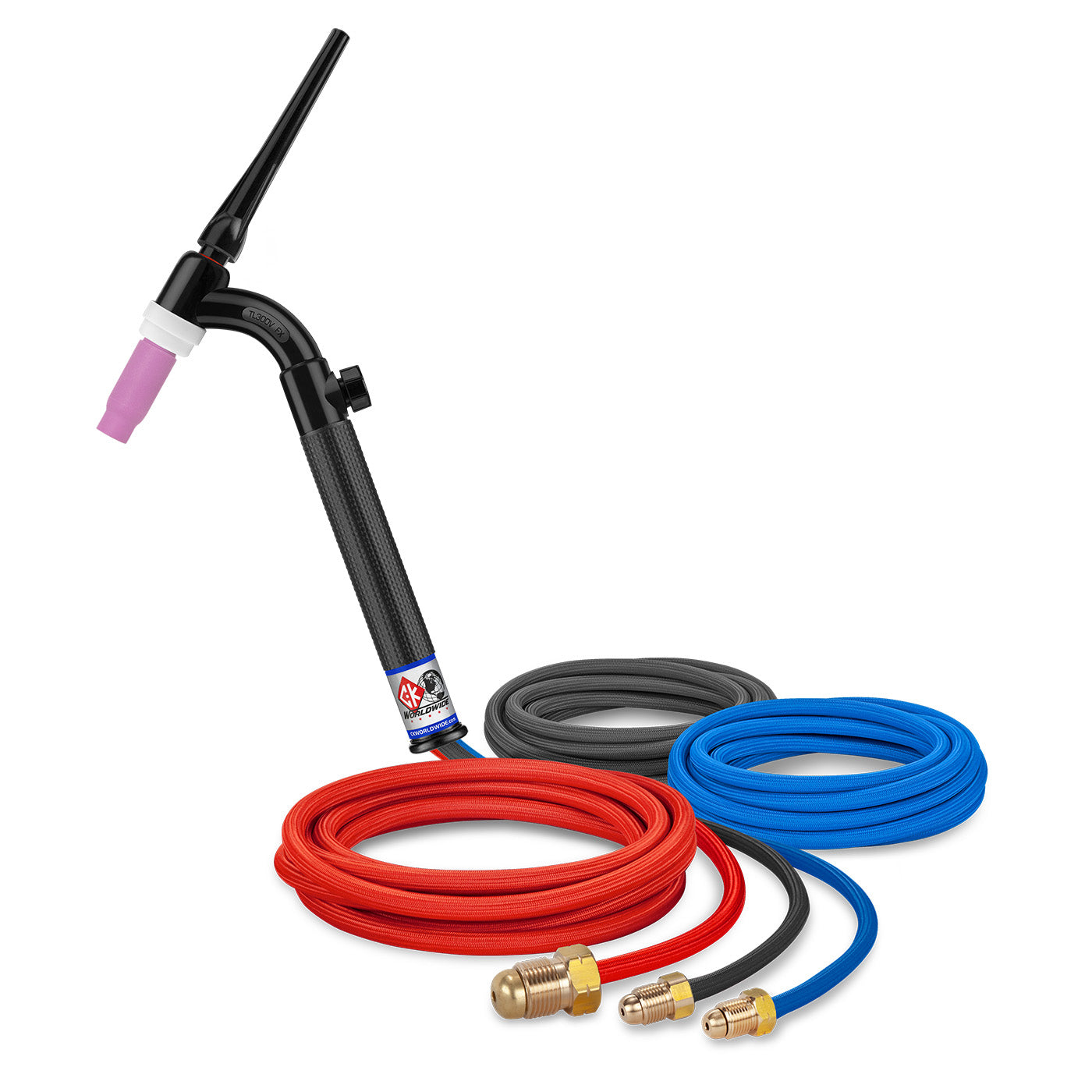

CK Worldwide TL312VSF FX - 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5' Super-Flex Cables, Trim-Line

The TL312VSF FX delivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle, combining CK Worldwide's signature flex head technology with integrated gas valve control for precision welding applications.

This water-cooled torch features a 40-degree articulating flex head that provides exceptional access in tight spaces and complex joint configurations. The integrated valve on the handle allows for precise gas flow control without returning to the machine, enhancing productivity and weld quality. Max Flow water cooling technology maintains optimal operating temperatures during extended high-amperage welding sessions, while the 12.5-foot Super-Flex cables deliver maximum flexibility and maneuverability around the workpiece.

• 350 amp rating at 100% duty cycle (ACHF or DCSP)
• Flex head design — 40-degree articulation in any direction
• Integrated gas valve on handle for flow control
• Water-cooled with Max Flow technology
• Super-Flex cables — 12.5-foot length for enhanced mobility
• Trim Line handle — slim profile for improved control and comfort
• 3 Series head accessories — standard 3/8" x 32 thread pattern
• Compatible with tungsten electrodes from .020" to 1/4" diameter

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Ideal for fabricators and production welders requiring maximum flexibility and precise control in demanding applications. The TL312VSF FX excels in structural welding, pipe work, and complex assemblies where torch maneuverability and integrated gas control enhance both efficiency and weld quality.
