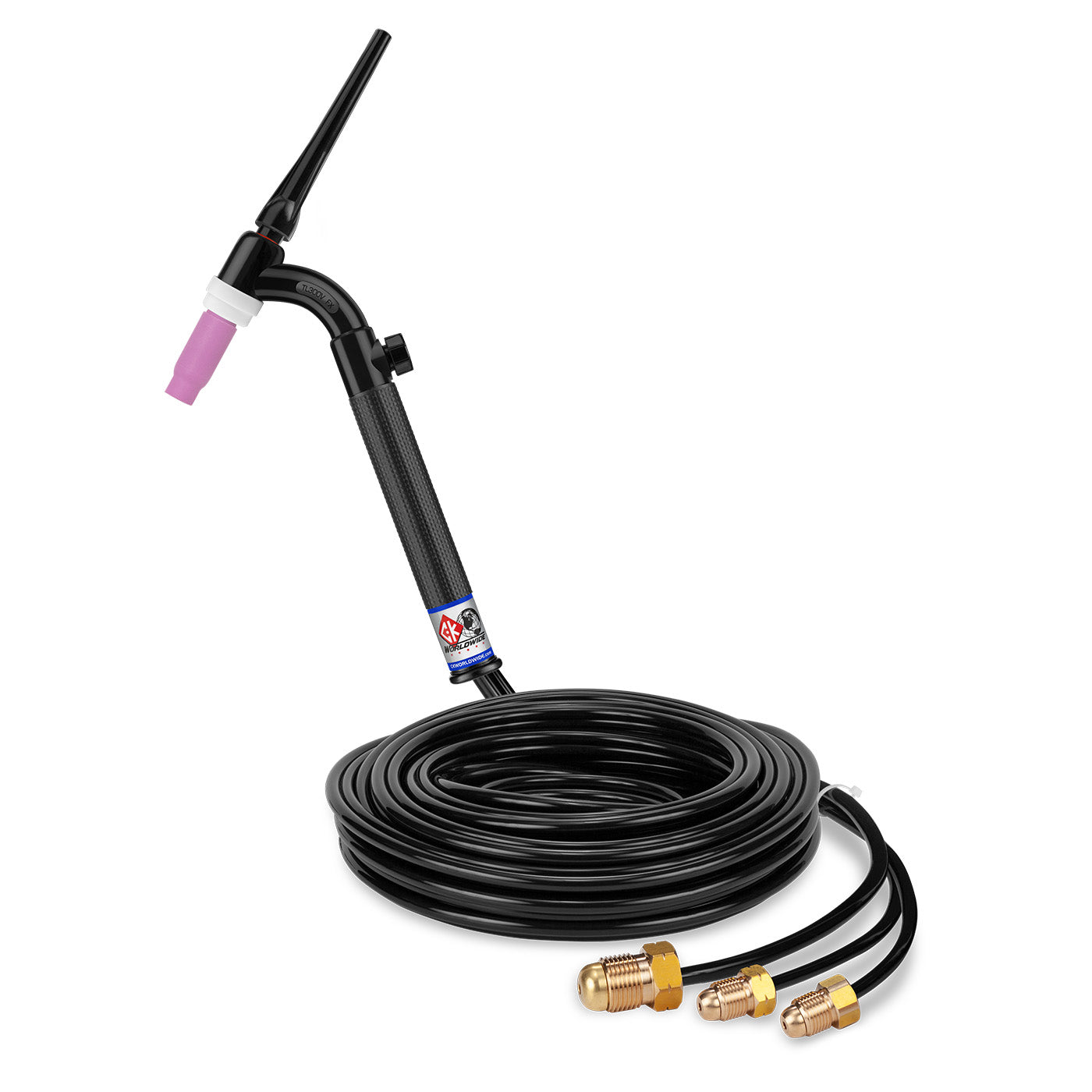

CK Worldwide TL325V FX - 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 25' Standard Cables, Trim Line

The TL325V FX delivers professional-grade TIG welding performance with CK Worldwide's signature flex head design, providing 40 degrees of directional versatility for accessing tight joints and complex geometries. This water-cooled torch features an integrated gas control valve and Max Flow cooling technology for extended operation at full capacity.

Built for demanding fabrication work, this torch combines the precision control of CK's Trim Line handle series with the flexibility needed for challenging welding positions. The 25-foot standard cable configuration provides excellent reach for larger workpieces while maintaining consistent arc performance.

• 350 amp capacity at 100% duty cycle (ACHF or DCSP)
• Flex head design — 40° movement in any direction
• Integrated gas valve — precise flow control at the torch
• Water-cooled with Max Flow technology
• 25-foot standard cables — 3-piece construction
• Trim Line handle — slim profile for enhanced control
• 3 Series consumables — uses industry-standard accessories
• Tungsten compatibility — .040" to 5/32" electrode capacity

Compatible Consumables

• 300L — Long Back Cap
• 300S — Short Back Cap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3GL116 — 1/16" Gas Lens
• 3GL332 — 3/32" Gas Lens

Ideal for precision TIG welding applications requiring both power and maneuverability, the TL325V FX excels in stainless steel, aluminum, and exotic alloy fabrication where torch positioning flexibility is critical for achieving consistent weld quality.
