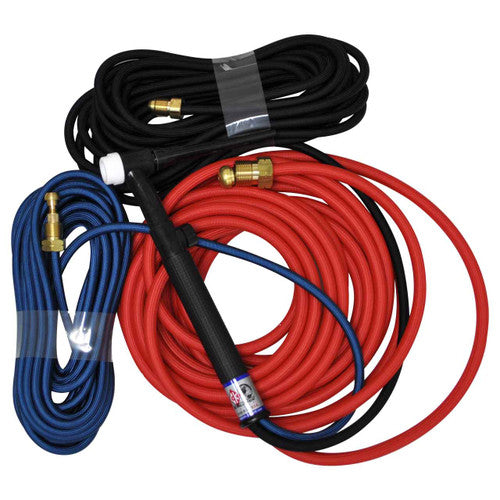

CK Worldwide TL325VSF FX - 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 25' Super-Flex Cables, Trim Line

The TL325VSF FX delivers professional-grade performance with 350 amp capacity at 100% duty cycle, engineered for demanding water-cooled TIG applications. This Trim Line torch combines CK Worldwide's signature flex head technology with integrated valve control and Max Flow cooling system for extended operation in heavy-duty fabrication environments.

The flex head provides 40 degrees of articulation in any direction, enabling precise electrode positioning in tight spaces and complex joint configurations. The integrated valve allows direct gas flow control at the torch handle, eliminating trips to the welding machine during setup and operation. Super-Flex cables deliver maximum flexibility while maintaining durability for shop floor use.

• 350 amp rating at 100% duty cycle (ACHF or DCSP)
• Water-cooled with Max Flow technology
• Flex head design — 40-degree articulation range
• Integrated valve for gas flow control
• 25-foot Super-Flex cables for enhanced maneuverability
• Trim Line handle — slim profile for improved control
• 3 Series head accessories — standard 3/8" x 32 thread pattern
• Compatible with tungsten from .020" to 1/4" diameter

Compatible Consumables

• 3CB40 — .040" Collet Body
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3C40 — .040" Collet
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Designed for professional welders and fabricators working on structural steel, pipe welding, and precision TIG applications where torch maneuverability and consistent arc control are essential for quality results.
