Model 801-15-510 Single-Stage Pressure Regulator

Model 801 single-stage medium duty regulator is designed to be compact, lightweight and rugged. It is perfect for most industrial cutting and welding applications. Model 801 features a brass body, 2 in. steel dual scale gauges that are easy-to read, ABS plastic ergonomic adjusting knob for precise operation and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. It has 5/8 in. - 18 outlet connections. Conveniently packaged in clamshell for point-of-purchase display.

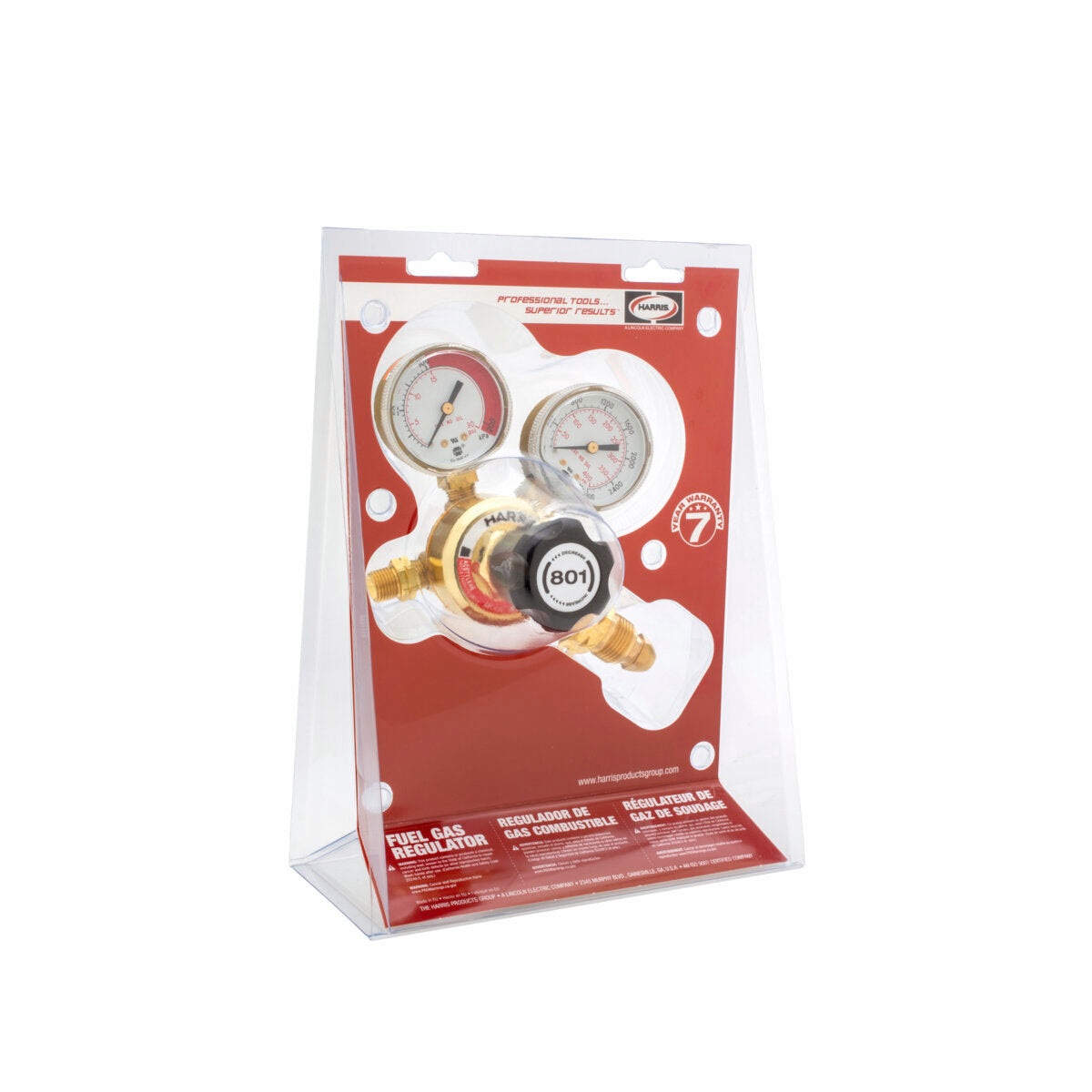

• Model 801-15-510 compact general-purpose medium duty single-stage regulator. (Clamshell)
• Model 801 single-stage medium duty regulator is designed to be compact, lightweight and rugged. It is perfect for most industrial cutting and welding applications. Model 801 features a brass body, 2 in. steel dual scale gauges that are easy-to read, ABS plastic ergonomic adjusting knob for precise operation and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. It has 5/8 in. - 18 outlet connections. Conveniently packaged in clamshell for point-of-purchase display.
• Compact, general purpose regulator
• Designed for medium duty industrial cutting and welding applications
• Brass body and chrome-plated zinc bonnet for longer service life
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Neoprene diaphragm for better pressure control
• Model 801-15-510 General-Purpose Single-Stage Pressure Regulator
• 7 Years
• 801-15-510 Clam
• Harris
• Acetylene

• Adjusting Knob: ABS plastic
• Body: Brass
• Bonnet: Electroless nickel-plated zinc
• Certification: CGA E-4
• Cv: 0.17
• Delivery Pressure Gauge (PSIG): 30RZ
• Delivery Pressure Range (PSIG): 0 - 15
• Diaphragm: Neoprene
• Duty: Medium
• Gas / Gas Service: Acetylene
• Gauges: 2 in. Steel dual scale (psi/kPa)
• Inlet Connection: CGA 510
• Maximum Inlet Pressure (PSIG): 500
• Outlet Connection: 9/16 in. - 18 LH
• Pressure Regulation PSIG/100 PSIG: 0.40
• Seat: PTFE Teflon®
• Supply Pressure Gauge (PSIG): 400

What's Included: Model 801-15-510 General-Purpose Single-Stage Pressure Regulator

Model Name: 801-15-510 Clam
