V-Series® Medium Duty Model 801 Ironworker® Kit CGA 540/510

Model 801 Deluxe Ironworker® kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2) diameter copper tube and is supplied with a size tip for brazing copper up to 1 1/2 in. (38.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

• This kit has the V-Series 2-tube cutting attachment design and thread. The fuel regulator cylinder connection is CGA 510. This kit can cut up to 4 in., braze up to 3 in. copper tube and weld up to 1/2 in. plate.
• Model 801 Deluxe Ironworker® kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2) diameter copper tube and is supplied with a size tip for brazing copper up to 1 1/2 in. (38.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.
• Medium Duty 2-tube design kit to be used with oxygen and acetylene gases.
• Regulator oxygen and acetylene Model 801 with easy-to-read dual scale 2 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen regulator delivers up to 145 psi and acetylene regulator delivers up to 15 psi.
• Torch handle Model VH10 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard® check valves.
• Cutting attachment model VH13 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
• Consumables included: V3-101-1 cutting tip, V-W-1 mixer and 23A90-5 welding tip.
• Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag.
• Model 801-15-510 Fuel Gas Regulator - 3002193,Model 801-145-540 Oxygen Regulator - 3002194,Model VH10 Torch Handle - 1400424,Model VH13 Cutting Attachment - 1300048,Model V-W1 MD Mixer Assembly - 9105213,Model V3-101-1 Cutting Tip - 1502083,Model 23A90-5 Welding Tip - 1600890,1/4 in. x 20 ft. Twin B&B R-Grade Oxy-Acetylene Hose - 4300591,Safety Glasses Shade 5 - 4303629,Handheld Ignitor - 9004486,Harris Insulated Tool Kit Bag - 8855094,Trilingual Kit Manual - 9505643,V-Series Tip Chart - 9500688
• Regulators: 7 Years;All other components: 1 Year
• VMD VH10801-510 DLX
• Harris
• Acetylene

• Cutting Attachment Model Number: VH-13
• Cutting Capacity: Up to 4 in. (101.6mm) plate with optional tip(s);Optional tip(s) sold separately
• Cutting Tip Style - Acetylene-H2 (Size): V3-101-1
• Duty: Medium
• Equipped With: FlashGuard® check valves - handle
• Fuel Gas Regulator Model Number: 801-15-510
• Gas / Gas Service: Acetylene
• Gauges: 2 in. Steel dual scale (psi/kPa) - regulators
• Hose Connection/Fittings: BxB
• Hose Size: 1/4 in. x 20 ft.
• Hose Type: Twin Oxygen-Acetylene R-grade
• Included Accessories: Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin BxB R-grade hose;Harris black and red insulated tool kit bag
• Mixer Model Number: V-W-1
• Mixer Type: E-Equal or positive pressure
• Oxygen Regulator Model Number: 801-145-540
• Recommended Items/Accessories: Standard One-Piece Tip Cleaner - Model C-9 - PN 9000156;Deluxe Two-Piece Tip Cleaner - Model E-9 - PN 9000160
• Seat: PTFE Teflon® - regulators
• Tank Connection: CGA 540, CGA 510
• Torch Handle Model Number: VH31
• Welding Capacity: Up to 1/2 in. (12.7mm) plate with optional tip(s). Optional tips sold separately
• Welding/Brazing Tip Model Number - Acetylene: 23A90-5

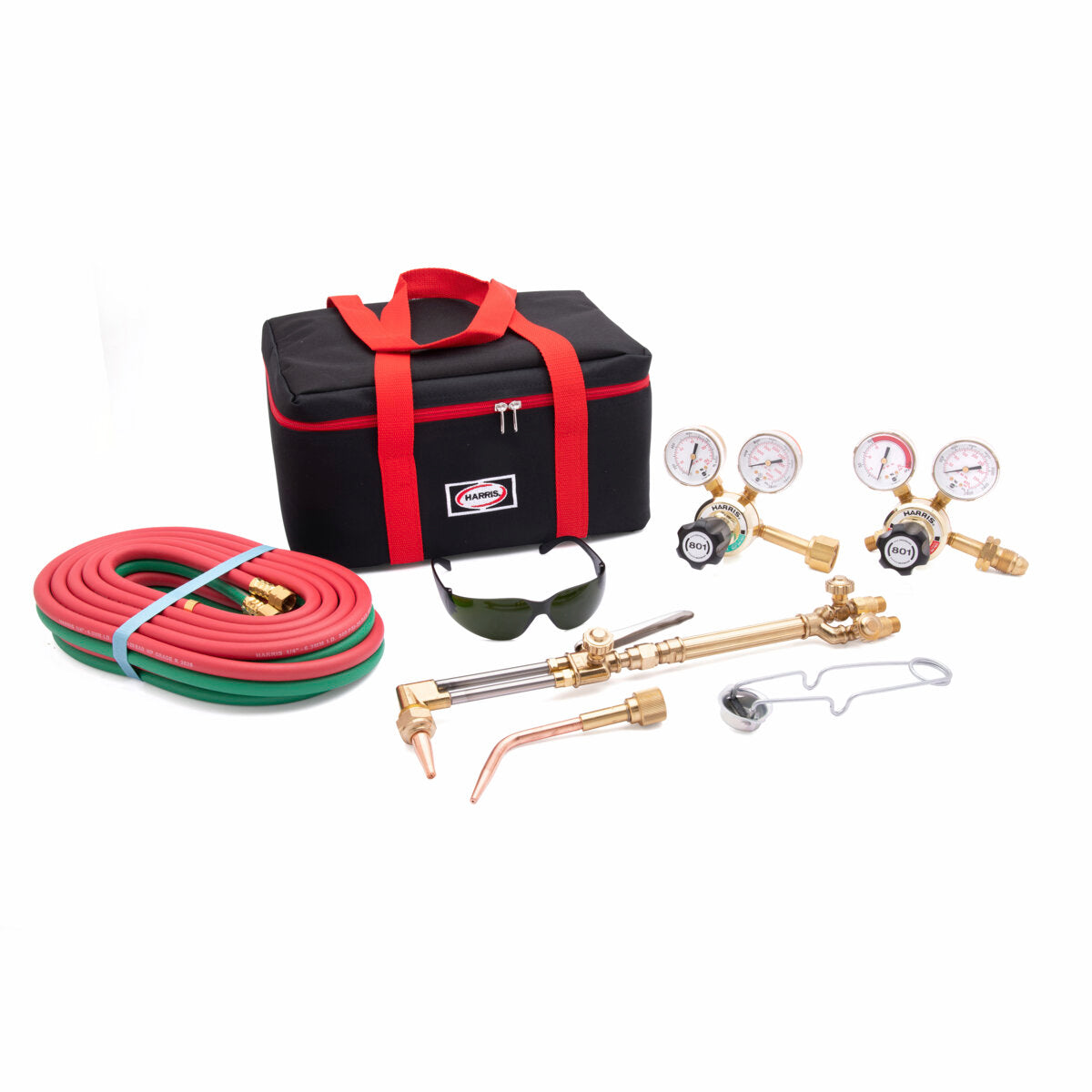

What's Included: Model 801-15-510 Fuel Gas Regulator - 3002193,Model 801-145-540 Oxygen Regulator - 3002194,Model VH10 Torch Handle - 1400424,Model VH13 Cutting Attachment - 1300048,Model V-W1 MD Mixer Assembly - 9105213,Model V3-101-1 Cutting Tip - 1502083,Model 23A90-5 Welding Tip - 1600890,1/4 in. x 20 ft. Twin B&B R-Grade Oxy-Acetylene Hose - 4300591,Safety Glasses Shade 5 - 4303629,Handheld Ignitor - 9004486,Harris Insulated Tool Kit Bag - 8855094,Trilingual Kit Manual - 9505643,V-Series Tip Chart - 9500688

Model Name: VMD VH10801-510 DLX
