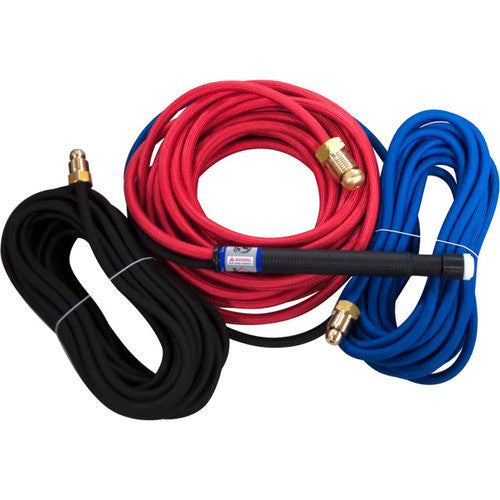

CK Worldwide CK20P-25SF 250 Amp Rigid Pencil TIG Torch, Water-Cooled, 25' SuperFlex Cable

The CK20P-25SF delivers precision TIG welding performance with its 250 amp @ 100% duty cycle capacity and water-cooled design featuring CK's Max Flow technology. This rigid pencil-style torch provides the control demanded by production welders working on critical applications requiring extended operating time.

• 250 amp ACHF or DCSP @ 100% duty cycle — continuous high-amperage welding capability
• Water-cooled design with Max Flow technology for extended operating time
• 25' SuperFlex cables — maximum flexibility without sacrificing durability
• Rigid pencil head — 7-1/2" (19.0cm) length for precision control
• 3 oz (85gm) weight — lightweight design reduces operator fatigue
• 2 Series Head Accessories — compatible with standard 2 Series consumables
• 3-piece cable construction — power, gas, and water lines for reliable operation

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" (1.0mm) x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" (1.6mm) x 7" 2% Ceriated Tungsten

The CK20P-25SF's rigid pencil design and water-cooled construction make it ideal for production environments requiring continuous high-amperage welding on aluminum, stainless steel, and other critical materials where precision and reliability are essential.
