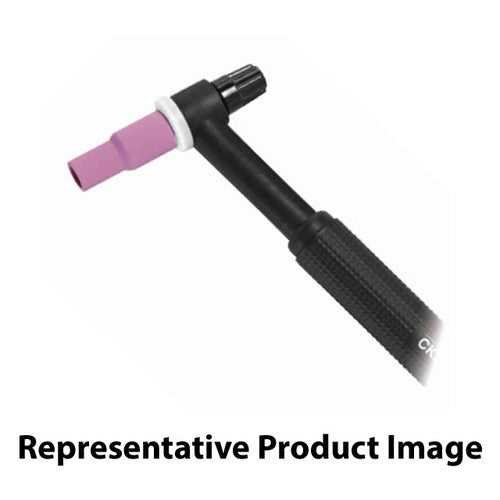

CK Worldwide CKA202SF 250 Amp Water-Cooled Rigid Head TIG Torch

The CK CKA202SF delivers 250 amp @ 100% duty cycle water-cooled TIG welding performance in a rigid head configuration. Built with CK's Max Flow cooling technology, this torch maintains optimal operating temperatures during extended high-amperage welding sessions.

• Amperage Rating: 250 amp @ 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Rigid for maximum stability and precision
• Valve: No valve design for streamlined operation
• Cable Type: Standard series cable configuration
• Series: CK 200 series professional grade
• Duty Cycle: 100% at rated amperage

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" (1.0mm) x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" (1.6mm) x 7" 2% Ceriated Tungsten

This torch excels in production welding environments where consistent arc stability and thermal management are critical. The rigid head design provides precise tungsten positioning for detailed work on steel, stainless steel, and aluminum applications requiring high amperage capacity.
