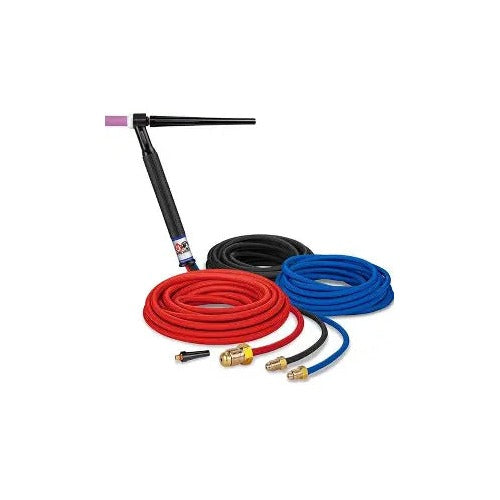

CK Worldwide CKA205SF 250 Amp Water-Cooled Rigid Head TIG Torch

The CKA205 delivers professional-grade performance with 250 amp capacity at 100% duty cycle, making it the go-to choice for demanding fabrication and production welding applications. This water-cooled rigid head torch combines CK's Max Flow cooling technology with proven reliability for consistent arc control and extended welding sessions.

• Amperage Rating: 250 amps at 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Rigid head for maximum stability and precision
• Valve Configuration: No valve design for streamlined operation
• Cable Type: Standard series cables included
• Duty Cycle: 100% continuous operation capability
• Construction: Heavy-duty components for industrial environments

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 200L — Long Back Cap
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

Engineered for high-production welding environments, the CKA205 provides the thermal management and arc stability required for critical weld applications. Compatible with standard CK 2-series consumables and recommended for use with water-cooled welding systems rated for continuous duty operation.
