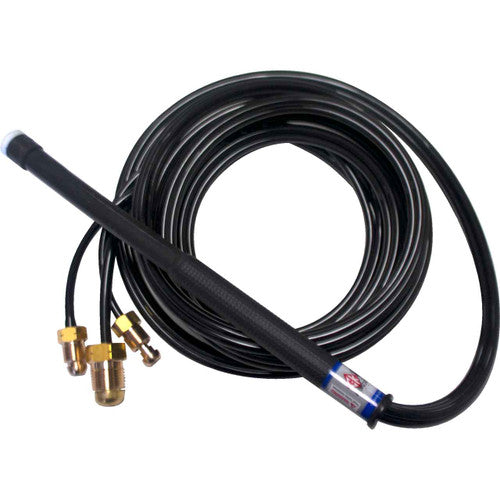

CK Worldwide CKPF212 250 Amp Flex Head TIG Torch, Water-Cooled, 12.5

The CKPF212 flex head TIG torch delivers 250 amps at 100% duty cycle with Max Flow water cooling technology for extended operation in demanding production environments. The signature flex head provides 40 degrees of angular movement in any direction, enabling precise arc positioning in tight spaces without compromising weld quality.

• 250 amp capacity — 100% duty cycle rating for continuous operation
• Water-cooled design — Max Flow technology for superior heat dissipation
• Flex head — 40-degree articulation in all directions
• 12.5-foot standard cables — 3-piece cable assembly
• No valve configuration — streamlined torch body design
• 2 Series compatibility — uses standard 2 Series consumables
• 11.5-inch overall length — pencil flex profile for maneuverability
• 3 oz weight — lightweight construction reduces operator fatigue

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

This torch is designed for professional welders requiring maximum flexibility and thermal performance in aluminum and stainless steel applications. Compatible with standard Dinse connectors and CK Worldwide's complete line of 2 Series consumables for consistent arc characteristics across your torch inventory.
