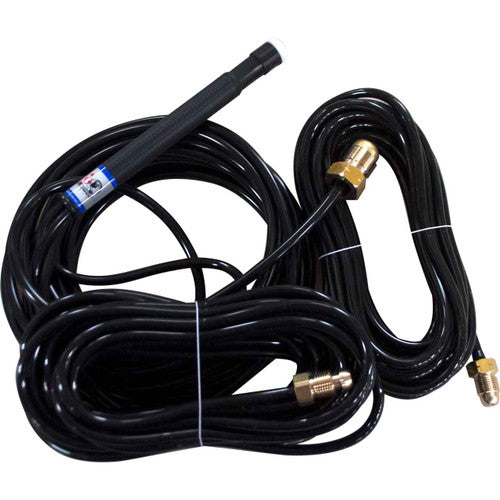

CK Worldwide CK20P-25 250 Amp Water-Cooled Pencil TIG Torch, 25' Cable

The CK20P-25 is a 250-amp water-cooled pencil-style TIG torch engineered for continuous heavy-duty welding at 100% duty cycle. This rigid head torch delivers precise arc control and consistent positioning for demanding fabrication work with a 25-foot cable reach.

Built with CK's Max Flow water cooling system, this torch maintains optimal operating temperatures during extended welding sessions. The pencil design provides excellent visibility and access in tight spaces while the water cooling enables sustained high-amperage operation without thermal limitations.

• Amperage Rating: 250 amp ACHF or DCSP at 100% duty cycle
• Cooling Type: Water-cooled with Max Flow system
• Head Style: Rigid pencil design
• Cable Length: 25 feet (7.6m)
• Overall Length: 7-1/2" (19.0cm)
• Weight: 3 oz (85gm)
• Cable Configuration: 3-piece construction
• Series: 2 Series head accessories compatible

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup

This torch is compatible with CK's 2 Series consumables and accessories, making replacement parts readily available. The water-cooled design makes it ideal for high-production welding environments and thick material applications where sustained high amperage is required.
